仿生空心螺钉与传统空心螺钉固定股骨颈骨折的生物力学对比研究

doi:10.3877/cma.j.issn.2096-0263.2026.02.006

中华老年骨科与康复电子杂志 ›› 2026, Vol. 12 ›› Issue (02) : 99 -105. doi: 10.3877/cma.j.issn.2096-0263.2026.02.006

髋部骨折

仿生空心螺钉与传统空心螺钉固定股骨颈骨折的生物力学对比研究

杨延江¹^,²^,³, 程晓东¹^,²^,³, 王忠正¹^,²^,³, 李泳龙¹^,²^,³, 丁凯¹^,²^,³, 崔蕴威¹^,²^,³^,⁴^,^†(

)

¹050051　石家庄，河北医科大学第三医院创伤急救中心
²河北省骨科研究所
³河北省骨科生物力学重点实验室
⁴河北医科大学第三医院科技成果转化中心

收稿日期:2026-04-01 出版日期:2026-04-05
通信作者: 崔蕴威
基金资助:
河北省重点研发计划项目卫生健康创新专项(22377770D)

A comparative biomechanical study of bionic cannulated screws versus conventional cannulated screws for femoral neck fracture fixation

Yanjiang Yang¹^,²^,³, Xiaodong Cheng¹^,²^,³, Zhongzheng Wang¹^,²^,³, Yonglong Li¹^,²^,³, Kai Ding¹^,²^,³, Yunwei Cui¹^,²^,³^,⁴^,^†()

¹Third Hospital of Hebei Medical University
²Orthopaedic Research Institute of Hebei Province
³Key Laboratory of Biomechanics of Hebei Province
⁴Science and Technology Achievement Transformation Center of the Third Hospital of Hebei Medical University, Shijiazhuang 050051, China

Received:2026-04-01 Published:2026-04-05
Corresponding author: Yunwei Cui

全文 ( ) 下载PDF ( ) 导出引用

引用本文：

杨延江, 程晓东, 王忠正, 李泳龙, 丁凯, 崔蕴威. 仿生空心螺钉与传统空心螺钉固定股骨颈骨折的生物力学对比研究[J/OL]. 中华老年骨科与康复电子杂志, 2026, 12(02): 99-105.

Yanjiang Yang, Xiaodong Cheng, Zhongzheng Wang, Yonglong Li, Kai Ding, Yunwei Cui. A comparative biomechanical study of bionic cannulated screws versus conventional cannulated screws for femoral neck fracture fixation[J/OL]. Chinese Journal of Geriatric Orthopaedics and Rehabilitation(Electronic Edition), 2026, 12(02): 99-105.

目的

比较仿生空心螺钉与传统空心螺钉固定股骨颈骨折的生物力学性能。

方法

取10具新鲜冷冻成人股骨标本，随机分为实验组（仿生空心螺钉固定）和对照组（传统空心螺钉固定），每组5具。建立完整股骨固定模型测试后，于同一标本制备PauwelsⅢ型股骨颈骨折模型。于600 N轴向载荷下测量整体位移、股骨颈区域平均应变及骨折线周围分区应变。

结果

完整股骨固定模型下，实验组前、后侧整体位移均大于对照组，差异有统计学意义（P<0.05），两组股骨颈区域平均应变差异无统计学意义（P>0.05）。骨折模型下，两组整体位移、平均应变及分区应变差异均无统计学意义（P>0.05）。

结论

仿生空心螺钉固定PauwelsⅢ型股骨颈骨折可提供初始稳定性，为后期骨整合提供有利的力学环境。

关键词: 股骨颈骨折, 仿生空心螺钉, 空心螺钉, 生物力学, 初始稳定性

Objective

To compare the biomechanical properties of bionic cannulated screws and conventional cannulated screws for the fixation of femoral neck fractures.

Methods

Ten fresh-frozen adult femoral specimens were randomly assigned into an experimental group and a control group, with 5 specimens in each group. The experimental group was fixed with bionic cannulated screws, and the control group with conventional cannulated screws. An intact femur fixation model was first established, followed by a Pauwels type Ⅲ femoral neck fracture model in the same specimen. Under an axial load of 600 N, overall displacement, mean strain in the femoral neck region, and regional strain around the fracture line were measured.

Results

In the intact femur fixation model, the overall displacement on both the anterior and posterior sides was significantly greater in the experimental group than in the control group (P<0.05), whereas no significant difference was found in the mean strain of the femoral neck region between the two groups (P>0.05). In the fracture model, no significant differences were observed between the two groups in overall displacement, mean strain, or regional strain (P>0.05).

Conclusions

Bionic cannulated screws fixation for Pauwels type Ⅲ femoral neck fractures can provide initial stability and create a favorable mechanical environment for subsequent osseointegration.

Key words: Femoral neck fracture, Bionic cannulated screw, Cannulated screw, Biomechanics, Initial stability

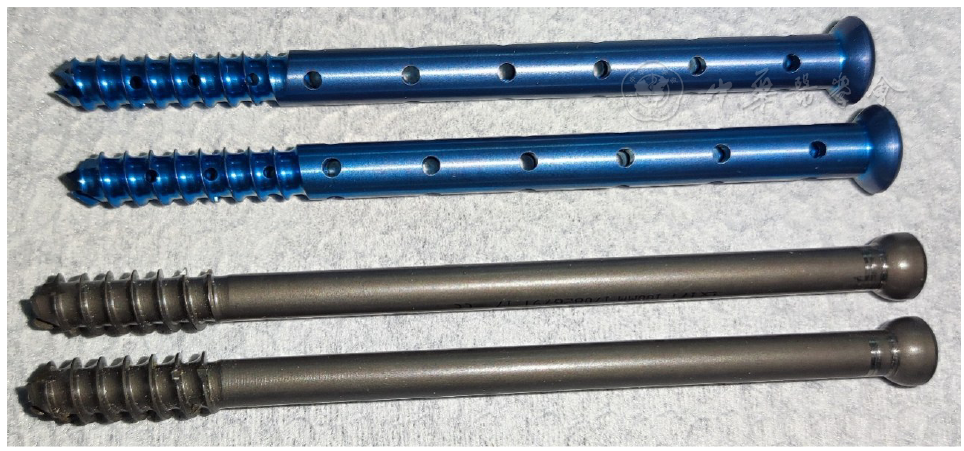

图1 传统空心螺钉和新型仿生空心螺钉对比

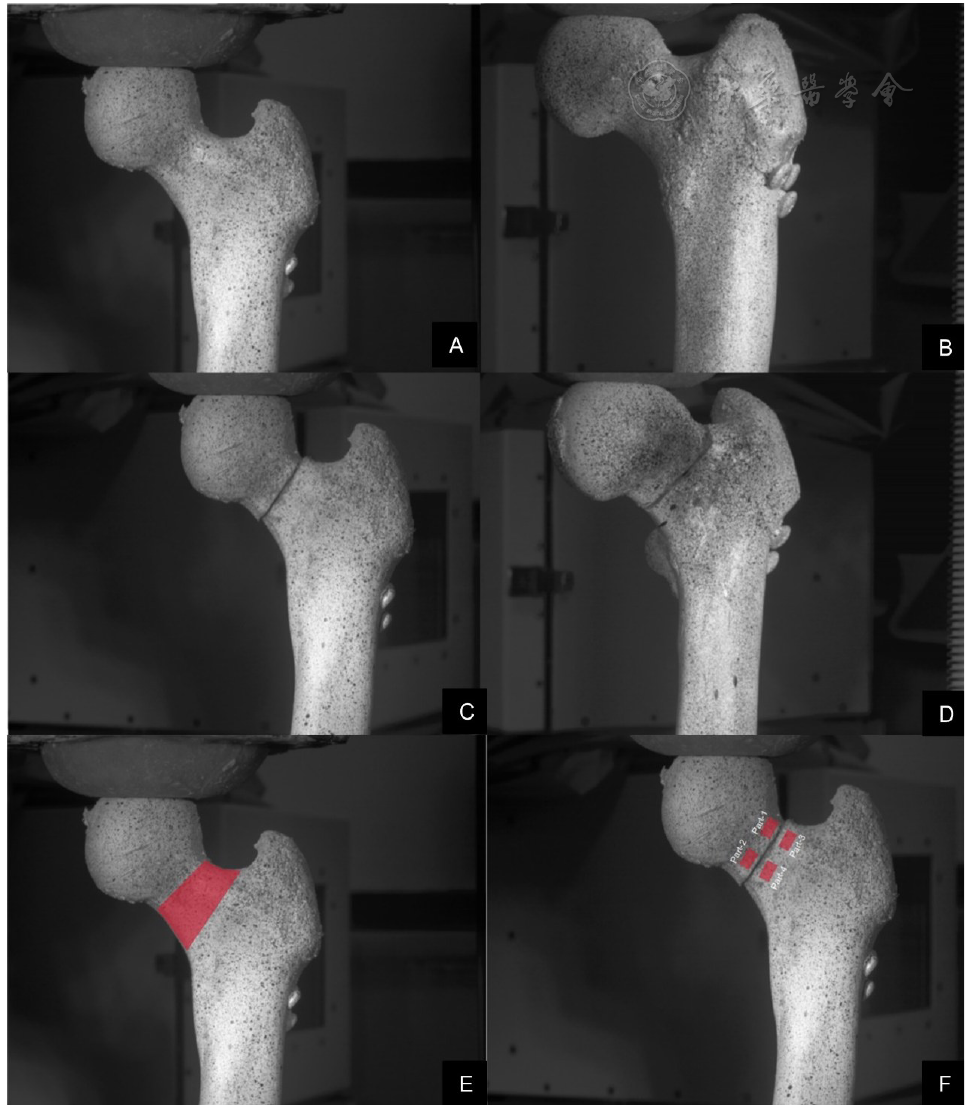

图2 （A）传统空心螺钉固定模拟愈合期；（B）仿生空心螺钉固定模拟愈合期；（C）Pauwels Ⅲ型股骨颈骨折期传统空心螺钉固定模拟；（D）Pauwels Ⅲ型股骨颈骨折期仿生空心螺钉固定模拟。（E）骨折愈合期应变测量区域。（F）骨折期应变测量区域（Part-1至Part-4）

表1 传统与仿生空心螺钉在愈合及骨折状态下不同侧面整体位移的生物力学比较（

±s）

组别	例数	愈合状态		骨折状态
组别	例数	前侧面（mm）	后侧面（mm）	前侧面（mm）	后侧面（mm）
传统空心螺钉组	5	0.57±0.21	0.40±0.17	0.98±0.41	0.91±0.39
仿生空心螺钉组	5	0.96±0.32	0.77±0.32	1.14±0.54	1.16±0.61
t值		2.527	2.508	0.560	0.158
P值		0.030	0.031	0.588	0.878

表1 传统与仿生空心螺钉在愈合及骨折状态下不同侧面整体位移的生物力学比较（

±s）

组别	例数	愈合状态		骨折状态
组别	例数	前侧面（mm）	后侧面（mm）	前侧面（mm）	后侧面（mm）
传统空心螺钉组	5	0.57±0.21	0.40±0.17	0.98±0.41	0.91±0.39
仿生空心螺钉组	5	0.96±0.32	0.77±0.32	1.14±0.54	1.16±0.61
t值		2.527	2.508	0.560	0.158
P值		0.030	0.031	0.588	0.878

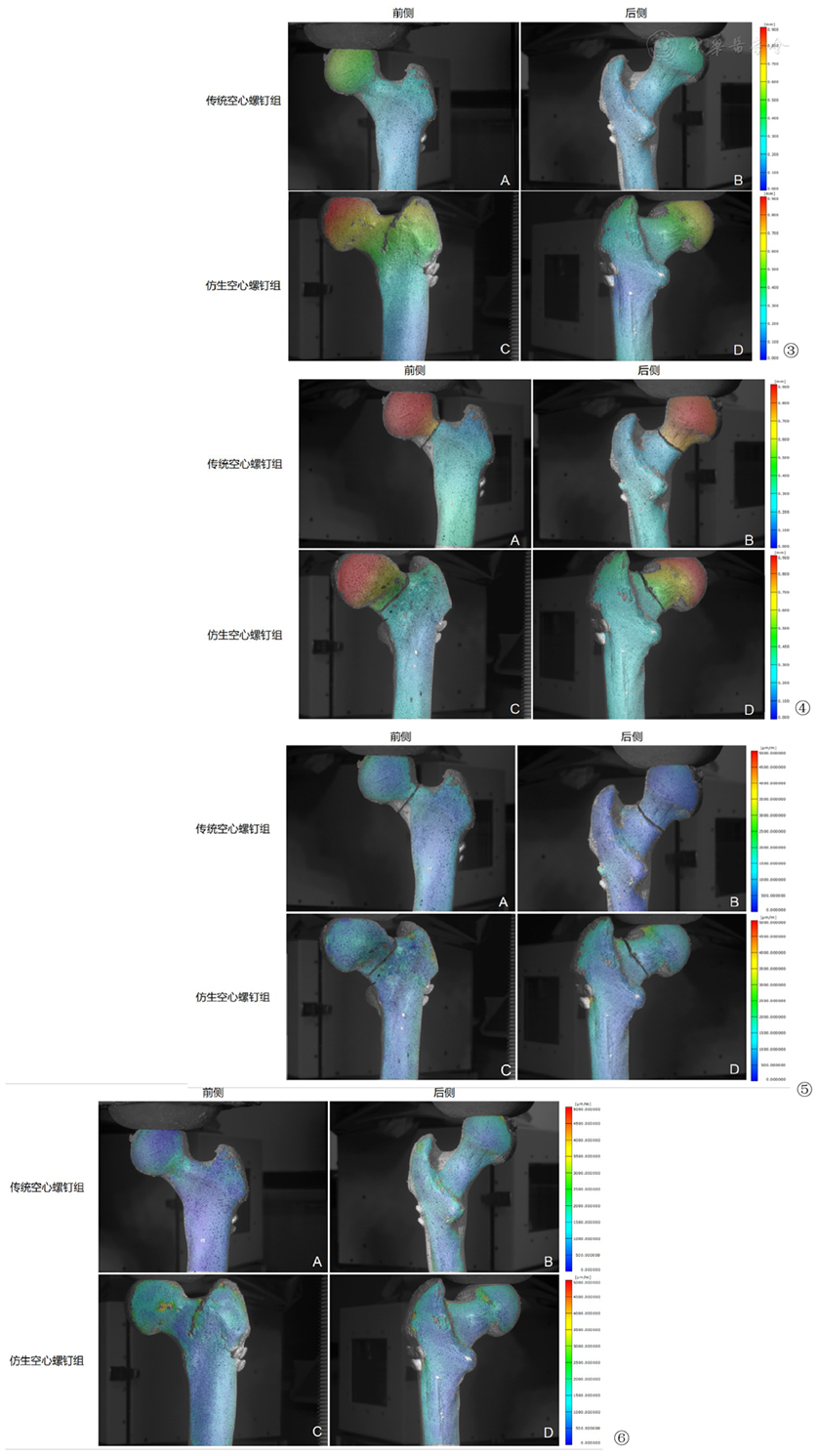

图3　骨折愈合状态下的两组位移云图。（A，B）传统空心螺钉组的前侧面和后侧面；（C，D）仿生空心螺钉组的前侧面和后侧面　图4　骨折状态下的两组位移云图。（A，B）传统空心螺钉组的前侧面和后侧面；（C，D）仿生空心螺钉组的前侧面和后侧面　图5　骨折愈合状态下的两组应变云图。（A，B）传统空心螺钉组的前侧面和后侧面；（C，D）仿生空心螺钉组的前侧面和后侧面　图6　骨折状态下的两组应变云图。（A，B）传统空心螺钉组的前侧面和后侧面；（C，D）仿生空心螺钉组的前侧面和后侧面

表2 传统与仿生空心螺钉在愈合及骨折状态下不同侧面股骨颈区域应变的生物力学比较（

±s）

组别	例数	愈合状态（μm/m）		骨折状态（μm/m）
组别	例数	前侧面	后侧面	前侧面	后侧面
传统空心螺钉组	5	759.45±312.52	732.43±364.55	1 006.35±475.34	943.44±369.49
仿生空心螺钉组	5	833.43±389.45	809.08±386.31	1 025.37±436.66	990.26±394.33
t值		0.363	0.354	0.074	1.356
P值		0.724	0.731	0.943	0.212

表2 传统与仿生空心螺钉在愈合及骨折状态下不同侧面股骨颈区域应变的生物力学比较（

±s）

组别	例数	愈合状态（μm/m）		骨折状态（μm/m）
组别	例数	前侧面	后侧面	前侧面	后侧面
传统空心螺钉组	5	759.45±312.52	732.43±364.55	1 006.35±475.34	943.44±369.49
仿生空心螺钉组	5	833.43±389.45	809.08±386.31	1 025.37±436.66	990.26±394.33
t值		0.363	0.354	0.074	1.356
P值		0.724	0.731	0.943	0.212

表3 传统空心螺钉与仿生空心螺钉在骨折状态下股骨颈不同区域前后侧面应变的定量比较（

±s）

组别	例数	前侧面（μm/m）
组别	例数	区域1	区域2	区域3	区域4
传统空心螺钉组	5	1272.90±644.87	1336.95±602.43	486.72±253.66	233.50±116.55
仿生空心螺钉组	5	1317.23±671.63	1407.51±528.85	690.71±355.98	372.84±184.01
t值		0.117	0.216	1.143	1.567
P值		0.909	0.834	0.280	0.148
组别	例数	后侧面（μm/m）
组别	例数	区域1	区域2	区域3	区域4
传统空心螺钉组	5	612.03±339.25	505.06±260.24	471.82±218.52	285.43±134.77
仿生空心螺钉组	5	726.67±328.34	573.34±282.84	437.20±202.39	200.46±100.61
t值		0.595	0.435	0.285	1.238
P值		0.565	0.673	0.782	0.244

表3 传统空心螺钉与仿生空心螺钉在骨折状态下股骨颈不同区域前后侧面应变的定量比较（

±s）

组别	例数	前侧面（μm/m）
组别	例数	区域1	区域2	区域3	区域4
传统空心螺钉组	5	1272.90±644.87	1336.95±602.43	486.72±253.66	233.50±116.55
仿生空心螺钉组	5	1317.23±671.63	1407.51±528.85	690.71±355.98	372.84±184.01
t值		0.117	0.216	1.143	1.567
P值		0.909	0.834	0.280	0.148
组别	例数	后侧面（μm/m）
组别	例数	区域1	区域2	区域3	区域4
传统空心螺钉组	5	612.03±339.25	505.06±260.24	471.82±218.52	285.43±134.77
仿生空心螺钉组	5	726.67±328.34	573.34±282.84	437.20±202.39	200.46±100.61
t值		0.595	0.435	0.285	1.238
P值		0.565	0.673	0.782	0.244
