Evaluation of the efficacy of musculoskeletal ultrasound-assisted individualized diagnosis and treatment for traumatic frozen shoulder: A Single-Center Retrospective Historical Control Study

doi:10.3877/cma.j.issn.2096-0263.2026.04.005

Abstract

Abstract:

Objective

To observe the clinical efficacy of musculoskeletal ultrasound (MSUS)-assisted individualized diagnosis and treatment for traumatic frozen shoulder (TFS).

Methods

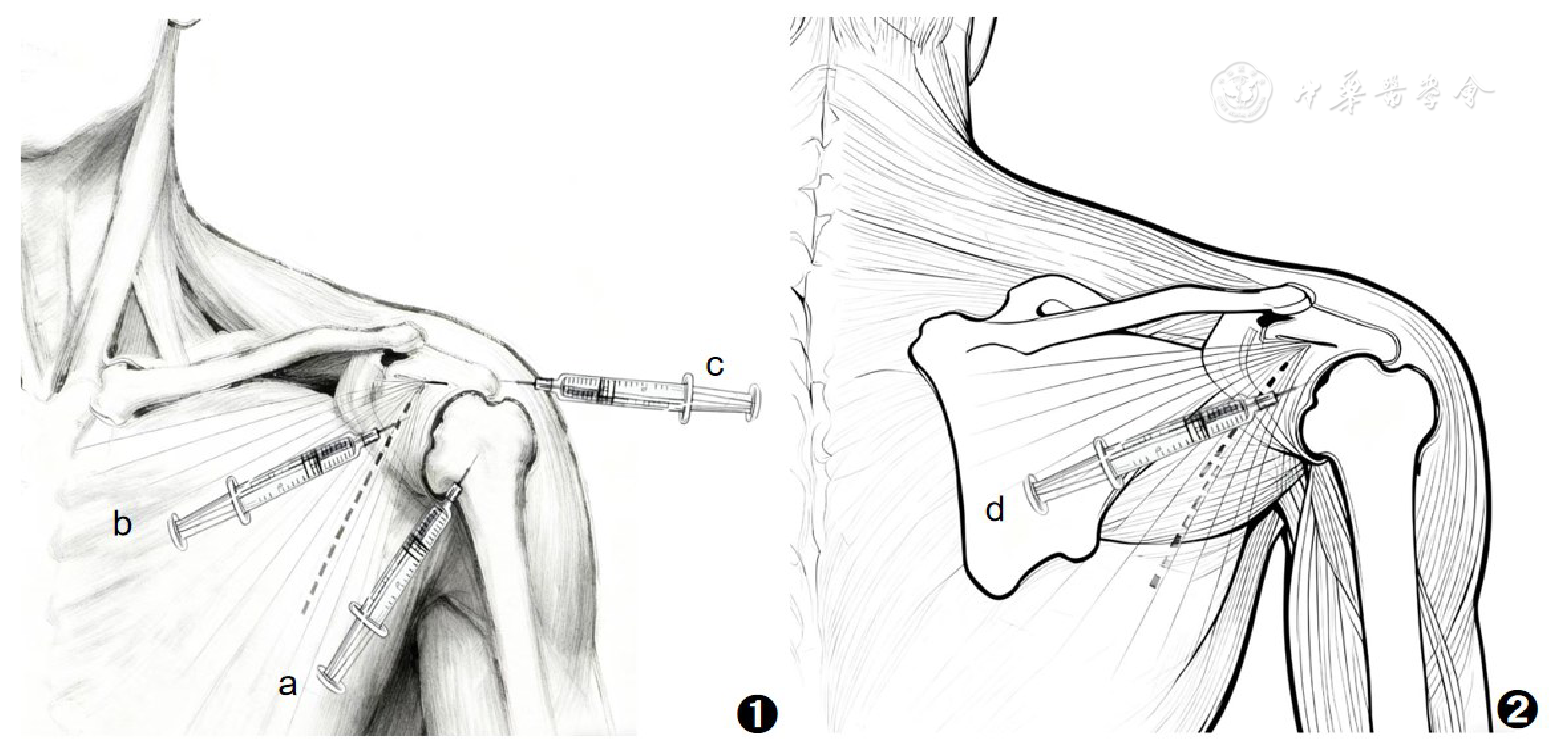

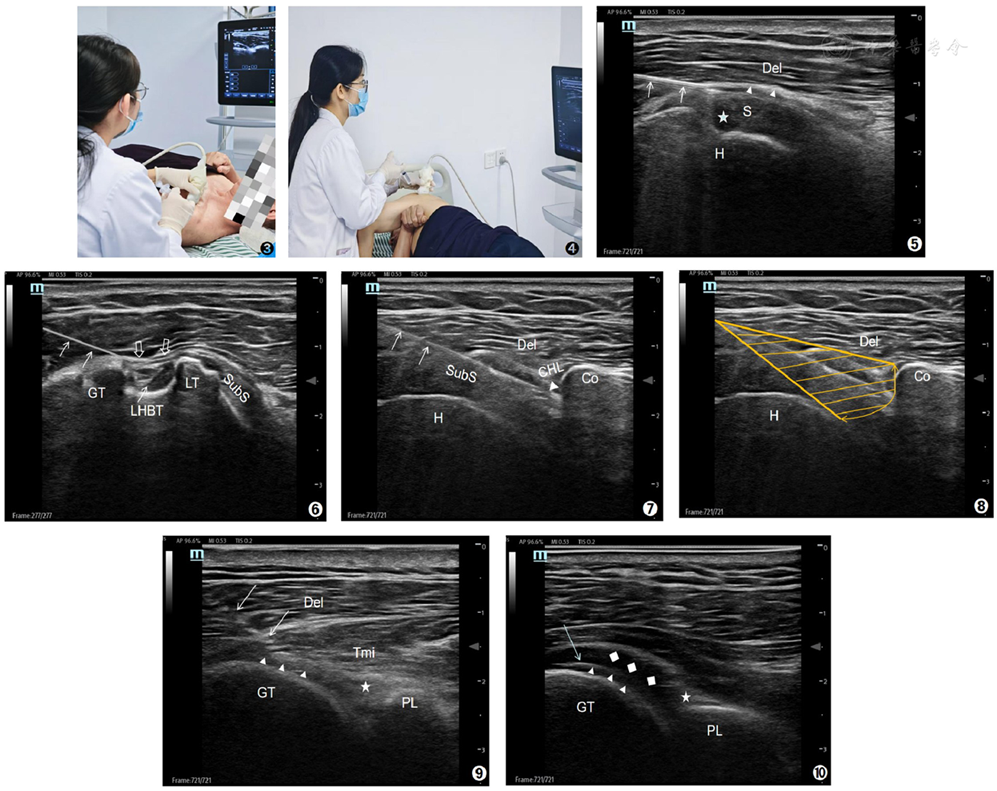

A total of 94 patients with TFS who met the inclusion criteria and were admitted to Lu'an People's Hospital between September 2021 and October 2024 were enrolled. Based on the implementation date (May 2023) of the ultrasound-guided interventional therapy system, patients treated in May 2023 or earlier were assigned to the blind peri-shoulder injection group (Control Group A, n=51), while those treated from June 2023 onwards were assigned to the ultrasound-guided individualized treatment group (Observation Group B, n=43). The control group received traditional blind peri-articular injections combined with a 4-week rehabilitation exercise prescription. The observation group received US-guided peri-articular injections, combined with an individualized rehabilitation exercise prescription of the same intensity and duration. Outcome measures, including the Visual Analogue Scale (VAS) score, Constant-Murley Shoulder Score (CMS), and range of motion (ROM) in various directions (including forward flexion, abduction, external rotation, and internal rotation), were assessed before the initial treatment, and at 4 and 8 weeks post-treatment to evaluate pain and shoulder functional recovery.

Results

Both groups showed significant improvements in VAS scores, CMS scores, and joint ROM at 4 and 8 weeks post-treatment compared to pre-treatment levels (all P<0.001). Intergroup comparisons at each post-treatment time point revealed that the observation group demonstrated superior improvement in all the aforementioned outcome measures compared to the control group (all P<0.05). Furthermore, the incidence of postoperative complications was lower in the observation group than in the control group (4.65% vs 21.57%, P<0.05).

Conclusions

MSUS-assisted individualized diagnosis and treatment for TFS demonstrates significant efficacy, effectively alleviating pain, improving mobility and shoulder function, and exhibiting a high safety profile. It is worthy of widespread clinical application and promotion.

Key words: Traumatic frozen shoulder, Musculoskeletal ultrasound, Individualized diagnosis and therapy, Ultrasound-guided injection

Lijuan Yu, Wenjie Liu, Mingjun Ding, Xingjun Lu, Zhi Fang, Daoming Wang. Evaluation of the efficacy of musculoskeletal ultrasound-assisted individualized diagnosis and treatment for traumatic frozen shoulder: A Single-Center Retrospective Historical Control Study[J]. Chinese Journal of Geriatric Orthopaedics and Rehabilitation(Electronic Edition), 2026, 12(04): 226-235.

/ / Recommend

Add to citation manager EndNote|Ris|BibTeX

URL: https://zhlngkykfdzzz.cma-cmc.com.cn/EN/10.3877/cma.j.issn.2096-0263.2026.04.005

https://zhlngkykfdzzz.cma-cmc.com.cn/EN/Y2026/V12/I04/226

Figures/Tables 11

References 25

1	Kraal T, Lübbers J, van den Bekerom MPJ, et al. The puzzling pathophysiology of frozen shoulders - a scoping review [J]. J Exp Orthop, 2020, 7(1): 91.
2	Neviaser RJ, Neviaser TJ. The Frozen Shoulder Diagnosis and Management [J]. Clin Orthop Relat Res, 1987, 223: 59-64.
3	Millar NL, Meakins A, Struyf F, et al. Frozen shoulder [J]. Nat Rev Dis Primers, 2022, 8(1): 59.
4	Cho CH, Song KS, Kim BS, Kim DH, Lho YM. Biological Aspect of Pathophysiology for Frozen Shoulder [J]. Biomed Res Int, 2018, 2018: 7274517.
5	曲洋,蒋浩然,邢博涵,等.肩袖损伤的治疗进展[J].中华肩肘外科电子杂志, 2024, 12 (4): 289-291.
6	陆军,王宸.冻结肩的诊疗进展[J].中华关节外科杂志(电子版), 2015, (4): 527-531.
7	余丽娟,梁英,刘文杰,等.肌骨超声影像技术在冻结肩诊断及介入治疗中的应用进展[J].中华老年骨科与康复电子杂志, 2021, 7(4): 252-256.
8	Hand C, Clipsham K, Rees JL, Carr AJ. Long-term outcome of frozen shoulder [J]. J Shoulder Elbow Surg, 2008, 17(2): 231-236.
9	赵雅妮,王萍芝,刘强,等.肌骨超声表现与冻结肩临床分期及症状的相关性研究[J].中华老年骨科与康复电子杂志, 2025, 11(3): 153-160.
10	Faiz KW. VAS--visuell analog skala [VAS--visual analog scale] [J]. Tidsskr Nor Laegeforen, 2014, 134(3): 323.
11	Yao M, Yang L, Cao ZY, et al. Chinese version of the Constant-Murley questionnaire for shoulder pain and disability: a reliability and validation study [J]. Health Qual Life Outcomes, 2017, 15(1): 178.
12	Mochizuki T, Sugaya H, Uomizu M, et al. Humeral insertion of the supraspinatus and infraspinatus. New anatomical findings regarding the footprint of the rotator cuff [J]. J Bone Joint Surg Am, 2008, 90(5): 962-969.
13	Longo UG, Carnevale A, Piergentili I, et al. Retear rates after rotator cuff surgery: a systematic review and meta-analysis [J]. J Clin Med, 2021, 10(3): 564.
14	Goetti P, Denard PJ, Collin P, et al. Shoulder biomechanics in normal and selected pathological conditions [J]. EFORT Open Rev, 2020, 5(8): 508-518.
15	杜小艳,高晓宇,新苏雅拉图.肩袖撕裂解剖危险因素及生物力学研究进展[J].中华肩肘外科电子杂志, 2025, 13(3): 173-178.
16	赵晨,廖涛,刘泰.肩峰下撞击综合征合并肩袖损伤调整肩肱节律的疗效分析[J].中华肩肘外科电子杂志, 2024, 12(1): 49-55.
17	Cailliet R. The shoulder in hemiplegia [M]. Philadelphia: FA Davis, 1980: 80.
18	Poku D, Hassan R, Migliorini F, et al. Efficacy of hydrodilatation in frozen shoulder: a systematic review and meta-analysis [J]. Br Med Bull, 2023, 147(1): 121-147.
19	赵琛,胡锐,周红,等.力偶练习和肩肱节律调整对肩袖损伤保守治疗影响的临床研究[J].中华肩肘外科电子杂志，2022, 10(3): 226-231.
20	Huang YH, Kuo YC, Hsieh LF, et al. Efficacy of Combination Therapy (Hydrodilatation and Subdeltoid Bursa Injection With Corticosteroid, Mobilization, and Physical Therapy) vs Physical Therapy Alone for Treating Frozen Shoulder: A Randomized Single-Blind Controlled Trial, Phase I [J]. Arch Phys Med Rehabil, 2024, 105(4): 631-638.
21	岳楚乔,熊南翔.脊髓电刺激治疗顽固性疼痛相关机制的研究进展[J].中华疼痛学杂志, 2024, 20(4): 592-598.
22	Fayad F, Roby-Brami A, Yazbeck C, et al. Three-dimensional scapular kinematics and scapulohumeral rhythm in patients with glenohumeral osteoarthritis or frozen shoulder [J]. J Biomech, 2008, 41(2): 326-332.
23	Zhang J, Zhang L, Guo F. Shear Wave Elastography of the Coracohumeral Ligament With Frozen Shoulder in Different Stages [J]. J Ultrasound Med, 2022, 41(10): 2527-2534.
24	Felici F, Quaresima V, Fattorini L, et al. Biceps brachii myoelectric and oxygenation changes during static and sinusoidal isometric exercises [J]. J Electromyogr Kinesiol, 2009, 19(2): e1-e11.
25	Ozbalci AB, Piskin A. Clinical Significance of Shear Wave Ultrasound Elastography in Patients With Idiopathic Adhesive Capsulitis: Can It Be Used Instead of Magnetic Resonance Imaging as an Early Indicator? [J]. Ultrasound Q, 2022, 38(3): 250-256.

指标	A组（n=51）	B组（n=43）	统计量	P值
年龄（岁，±s）	52.71±8.91	52.23±6.83	t=1.000	0.320
性别（男/女，例）
男[例（%）]	22（43.14）	18（41.86）	χ²=2.100
女[例（%）]	29（56.86）	25（58.14）		0.147
病程（月，±s）	4.73±1.79	4.26± 1.71	t=0.781	0.437
病情分级*
轻度[例（%）]	7（13.7）	8（18.6）
中度[例（%）]	31（60.8）	21（48.8）	χ²=1.923	0.166
重度[例（%）]	13（25.5）	14（32.6）
操作医生
甲医生[例（%）]	27（52.9）	23（53.5）
乙医生[例（%）]	24（47.1）	20（46.5）	χ²=0.320	0.572

指标	A组（n=51）	B组（n=43）	统计量	P值
年龄（岁，±s）	52.71±8.91	52.23±6.83	t=1.000	0.320
性别（男/女，例）
男[例（%）]	22（43.14）	18（41.86）	χ²=2.100
女[例（%）]	29（56.86）	25（58.14）		0.147
病程（月，±s）	4.73±1.79	4.26± 1.71	t=0.781	0.437
病情分级*
轻度[例（%）]	7（13.7）	8（18.6）
中度[例（%）]	31（60.8）	21（48.8）	χ²=1.923	0.166
重度[例（%）]	13（25.5）	14（32.6）
操作医生
甲医生[例（%）]	27（52.9）	23（53.5）
乙医生[例（%）]	24（47.1）	20（46.5）	χ²=0.320	0.572

组别	例数	0W		4W		8W
组别	例数	前屈	外展	前屈	外展	前屈	外展
A组	51	107.88±23.45	105.35±3.09	134.39±12.46^a	132.08±11.13^a	138.35±11.26^a	140.18±12.73^a
B组	43	100.37±21.76	100.58±2.97	147.74±12.69^ab	147.30±12.76^ab	152.77±12.43^ab	156.70±12.00^ab
t值		1.599	1.102	-5.132	-6.178	-5.895	-6.435
P值		0.057	0.137	<0.001	<0.001	<0.001	<0.001

组别	例数	0W		4W		8W
组别	例数	前屈	外展	前屈	外展	前屈	外展
A组	51	107.88±23.45	105.35±3.09	134.39±12.46^a	132.08±11.13^a	138.35±11.26^a	140.18±12.73^a
B组	43	100.37±21.76	100.58±2.97	147.74±12.69^ab	147.30±12.76^ab	152.77±12.43^ab	156.70±12.00^ab
t值		1.599	1.102	-5.132	-6.178	-5.895	-6.435
P值		0.057	0.137	<0.001	<0.001	<0.001	<0.001

组别	例数	0W		4W		8W
组别	例数	外旋	内旋	外旋	内旋	外旋	内旋
A组	51	9.86±5.51	18（17，19）	25.18±8.53^a	13（11，15）^a	42.20±9.16^a	11（9，12）^a
B组	43	11（7，15）	18（16，19）	31.51±10.95^ab	11（9，12）^ab	62.95±11.91^ab	9（8，10）^ab
z/t值		-0.872	-0.294	-3.151	1.960	-9.547	-2.942
P值		0.383	0.769	<0.001	<0.01	<0.001	0.003
